Product Details
In The Box
- (1) 1/10 Mercedes-Benz G 500 CC-02 Assembly kit
- (1) Tamiya TBLE-02S ESC

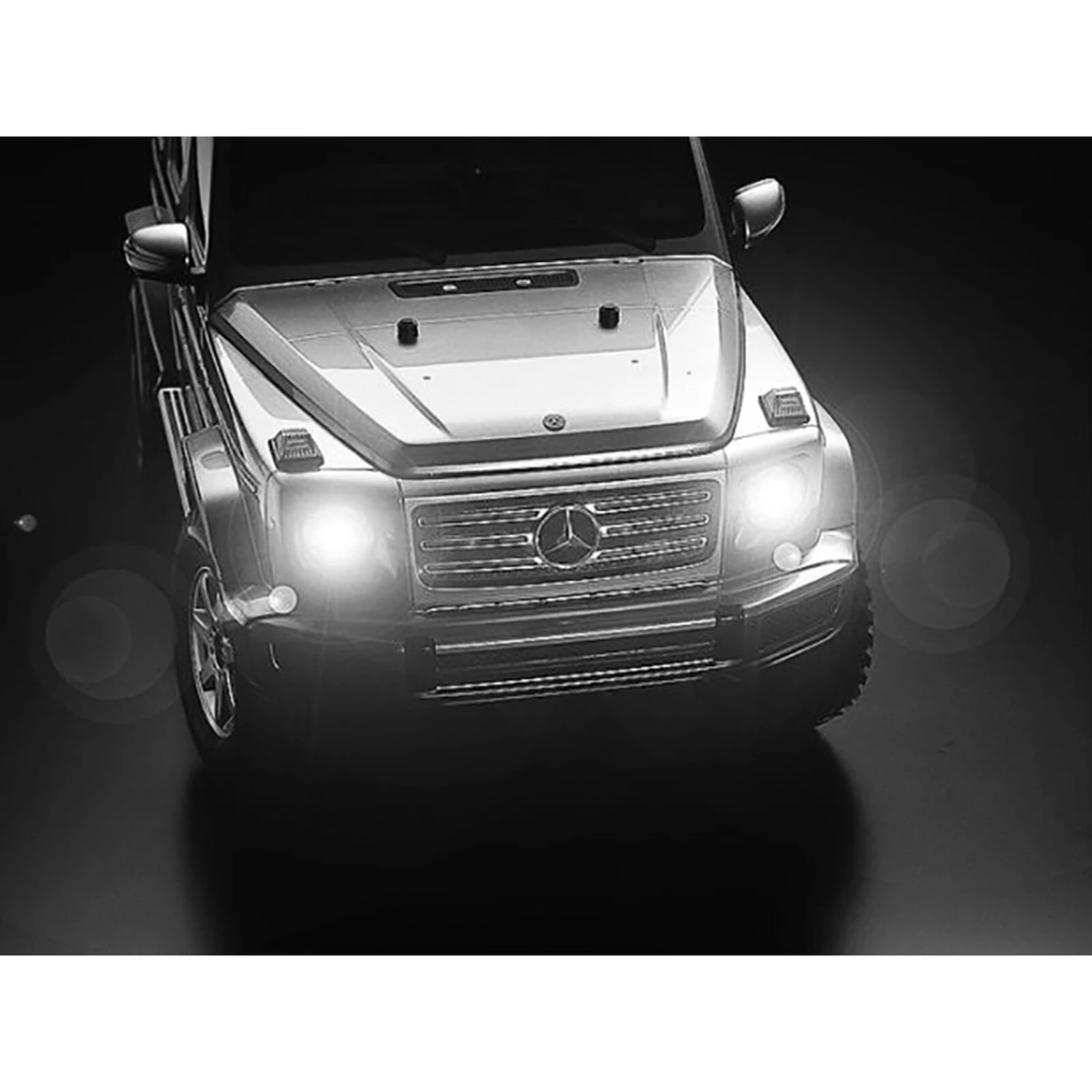

- (1) TLU-01 LED Light Unit and LEDs
- (1) Product Manual
Needed to Complete
- 2-Channel radio, steering servo
- 7.2-7.4volt battery pack with compatible charger
- Tamiya PS paint
Features
Product Specifications
| Motor Type | Brushed |
| Speed Control | Included |
| Wheelbase | 10.5″ (267mm) |
| Bushing Material | Plastic |
| Charger | Sold Separately |
| Differential | Bevel gear, lockable (requires disassembly) |
| Max Battery Dimensions | 5.3 x 1.8 x 0.9″ (135 x 46 x 24mm) |
| Receiver | Sold Separately |
| Power Type | Electric |
| Gear Pitch | 0.6 Module |
| Approximate Assembly Time | 1-3 Hours |
| Body | Clear polycarbonate |
| Brakes | Integral with ESC |
| Pinion | 16T |
| Scale | 1/10 |
| Battery | Sold Separately |
| Motor Size | 540 |
| Product Length | 17.9″ (455mm) |
| Spur Gear | 83T |

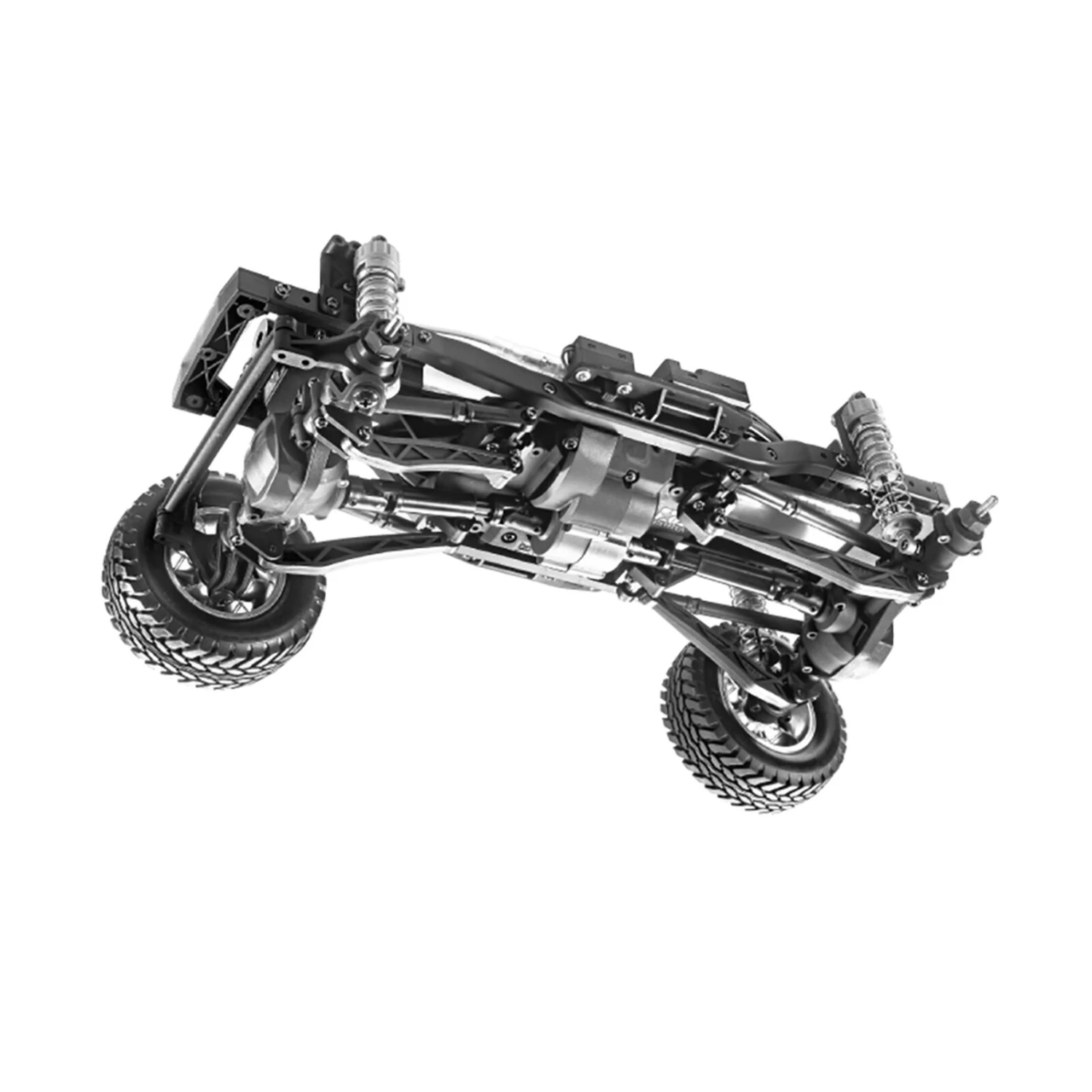

| Suspension | 4-link rigid plastic arms, front and rear |
| Battery Tray Dimensions | 5.3 x 1.8 x 0.9″ (135 x 46 x 24mm) |
| Product Width | 7.7″ (196mm) |

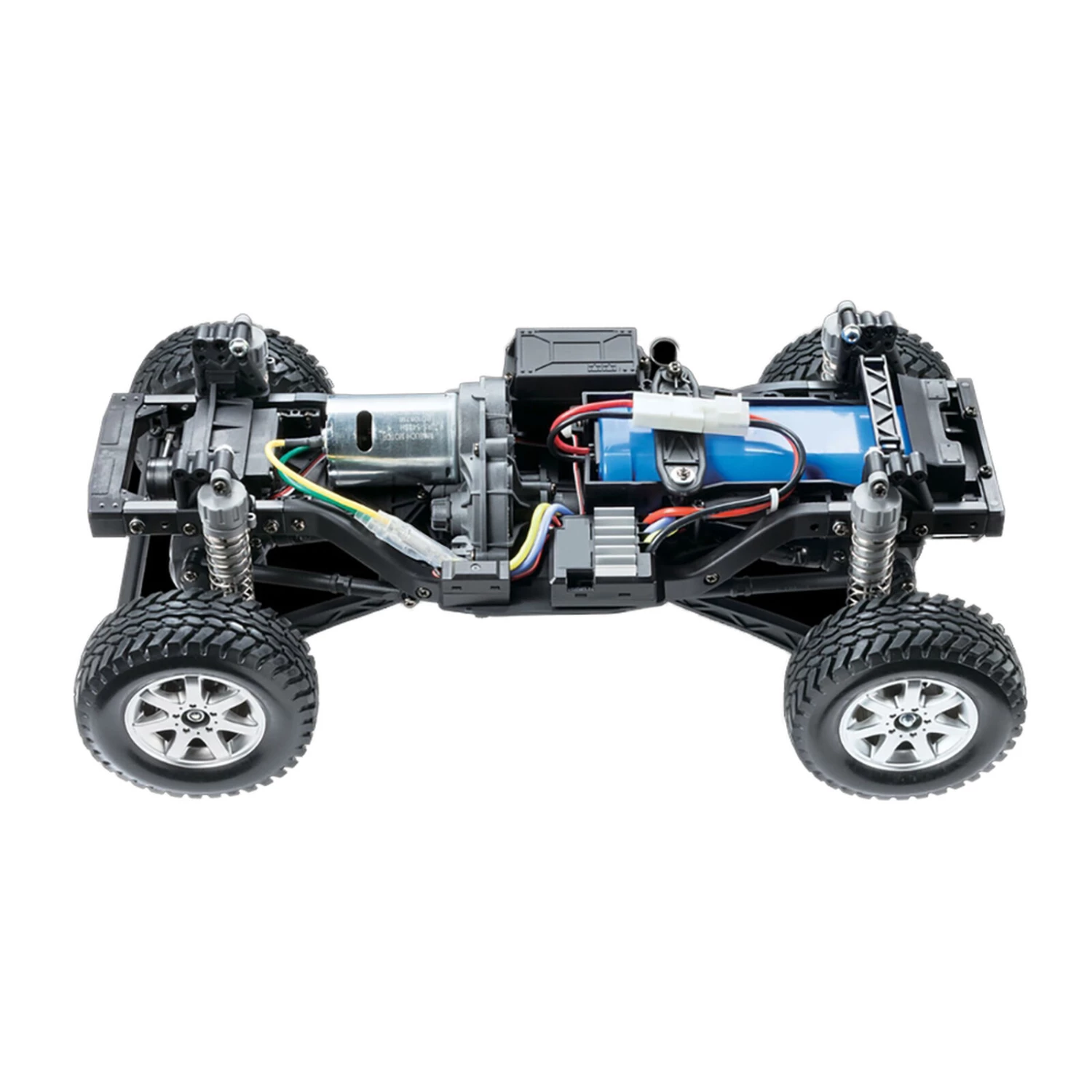

| Chassis | Ladder type FRP (fiberglass reinforced plastic) |
| Completion Level | Kit |
| Drivetrain | 4WD |
| Product Height | 8.1″ (207mm) |
| Shock Type | CVA oil-filled |
| Wheel Type | Molded plastic, silver in color |
| Tire Tread | On-R |
| Vehicle Type | Rock Crawler |
| Water-Resistant | Yes |
